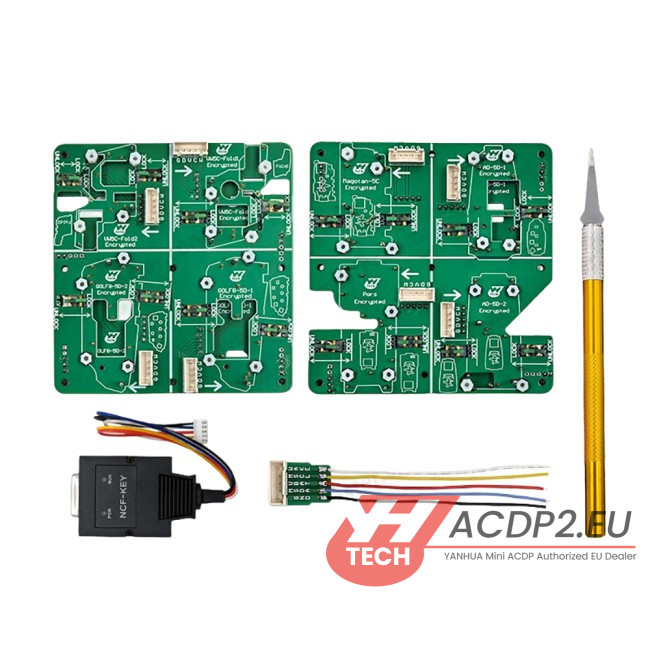

Great news for automotive locksmiths! Yanhua Mini ACDP/ACDP2 now supports VAG MQB49 5C 5D key adding function. ACDP Module 44 with active A60A license and solder-free interface boards are required.
What Can Module 44 Do?
Add Keys: Program original new keys or used keys for VW Audi Porsche 5C/5D
Modify IDs: modify the ID of original keys for 5C/5D
What’s the advantage of Yanhua Module 44?
l Pinpoint Accuracy: The special interface board lines up perfectly with all the test points.
l No Disassembly: Everything is done without taking the car apart.
l No Ongoing Costs: Pay once for the module—no annual fees or surprise per-key charges.
l Plug and Play: The board handles wake point connection automatically, making the process super smooth.
l Built Tough: The dedicated hardware is designed for reliable, consistent reads and writes.
Which models are supported by Yanhua ACDP Module 44?
l VW 5C Fold-1
l VW 5C Fold-2
l VW 5D Golf8-1
l VW 5D Golf8-2
l VW 5C Magotan
l Audi 5D-1
l Audi 5D-2
l Porsche
How to Add Key by Yanhua ACDP2 with Module 44?
Open ACDP-II software
Follow the menu path:

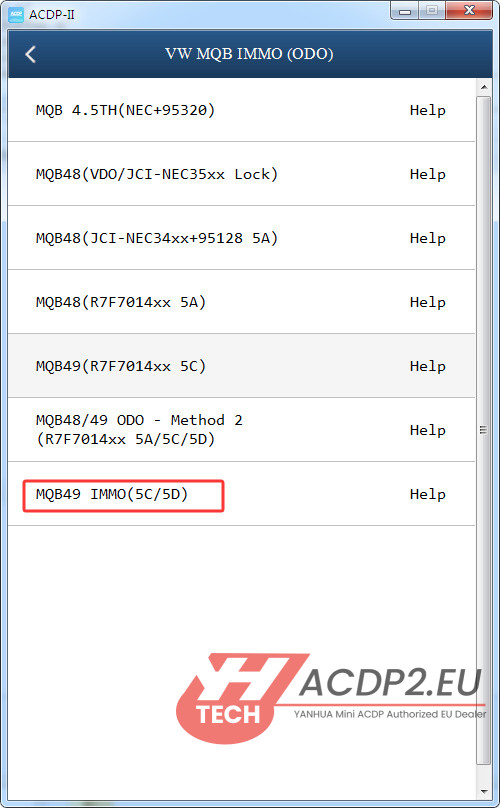

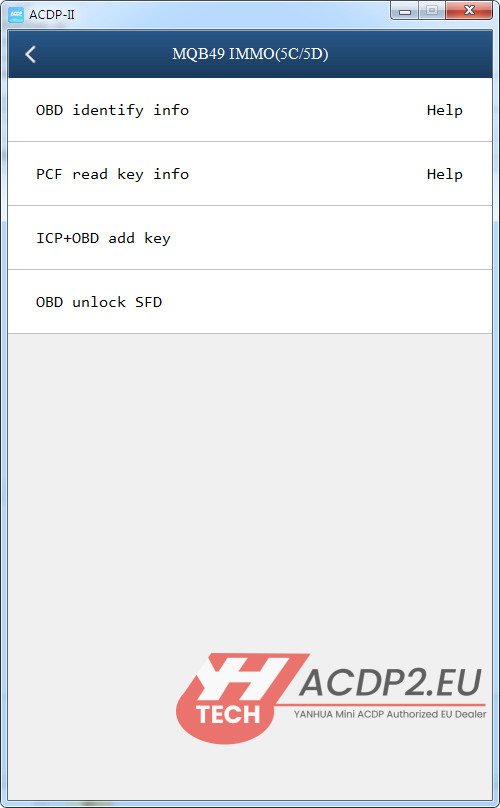

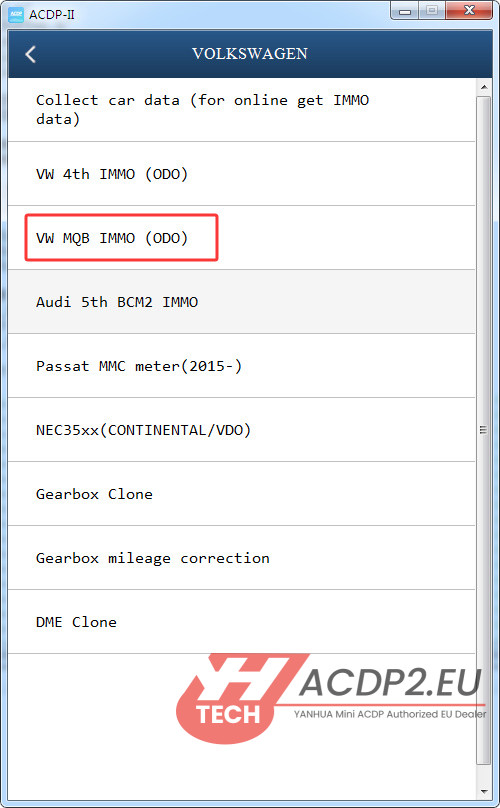

VW > VW MQB IMMO (ODO) > MQB49 IMMO (5C/5D) > ICP+ OBD add key

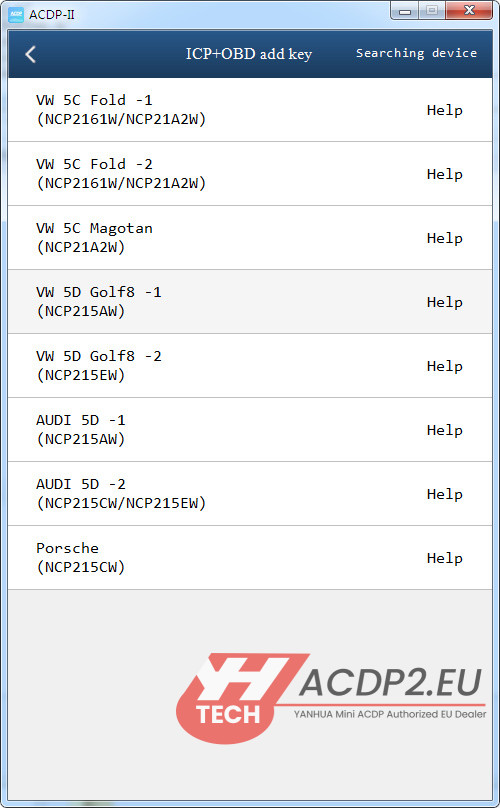

Select the VW model you’re working on.

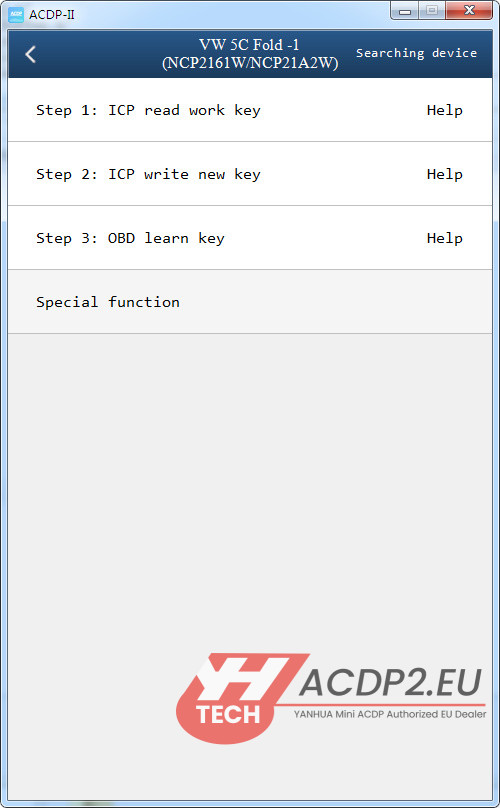

Perform 3-step key programming below:
Step 1: ICP Read Working Key
Step 2: ICP Write New Key
Step 3: OBD Learn Key

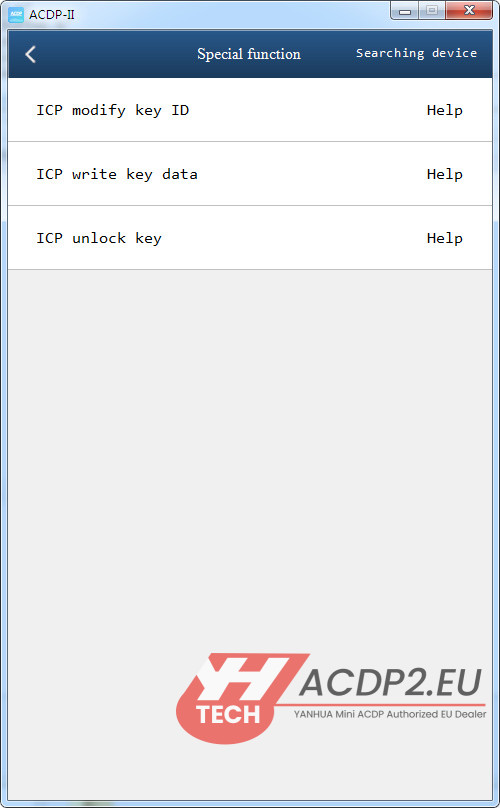

Besides, Mini ACDP2 with Module 44 also supports the following functions:
Modify Key ID via ICP
Write Key Data via ICP: Write all the key data, can be used to recover the key data
Unlock Keys via ICP: Unlock used key
