Question:
Can I use Yanhua ACDP2 to clone Renault Getrag DC4 DPS6 gearbox?
ACDP2.EU engineer replied:
Yes, you need to use ACDP Module 26 License AA00 and Module 19 PTCU cable to work with ACDP2.
Follow the guide below to operate:
1.Bind device
Run ACDP APP, make sure your Mini ACDP2 is bound to ACDP APP
2.Connect device

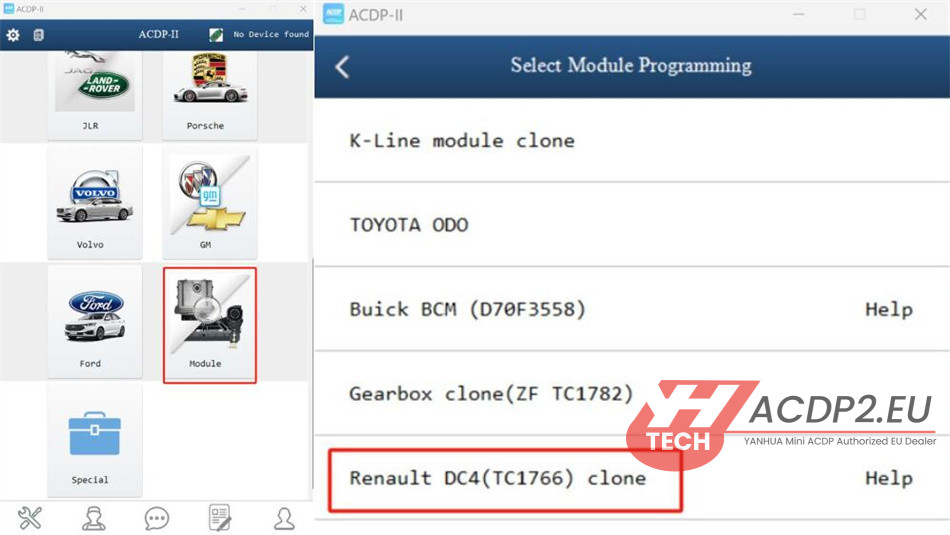

Navigate to Module-> Renault DC4 (TC1766) clone

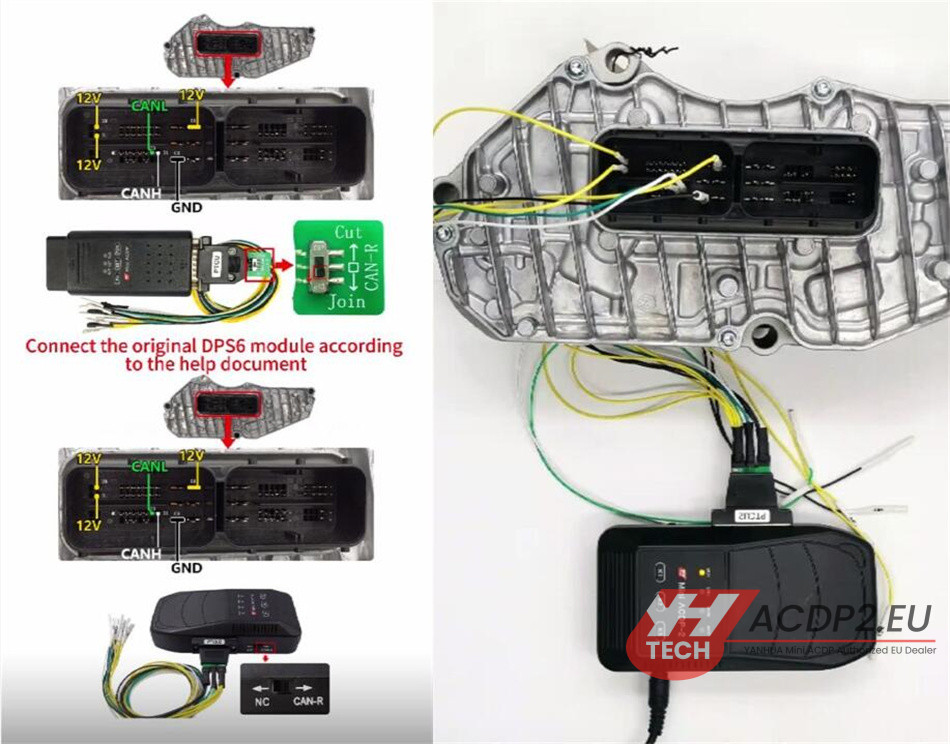

Click “Help” to check the connection diagram
Connect ACDP2 and Renault gearbox properly using Yanhua Module 19 PTCU cable
3.Full back up original gearbox data

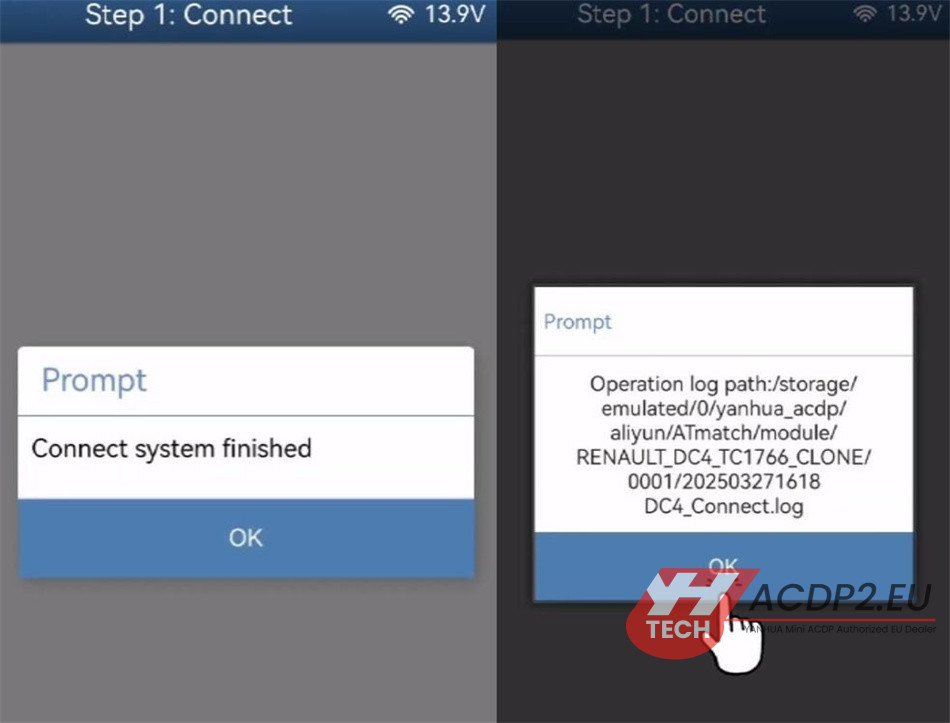

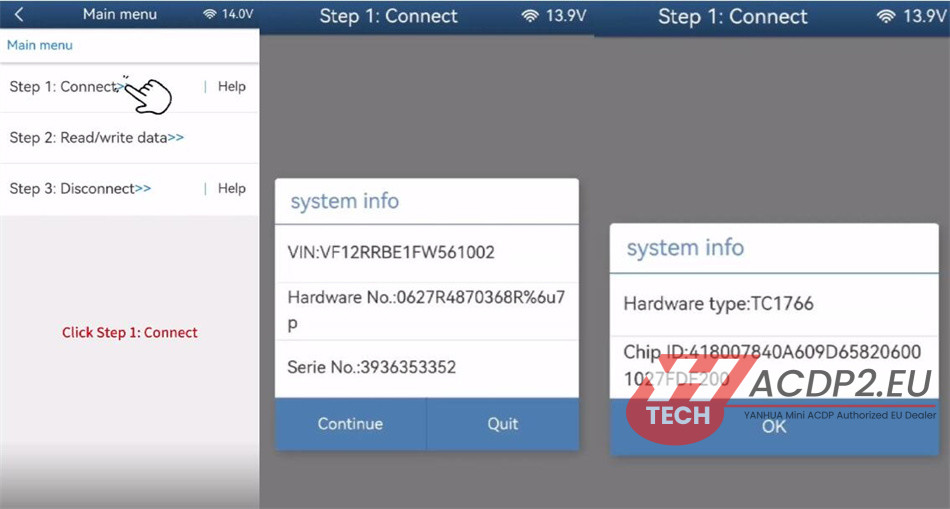

Perform “Step 1: Connect” to identify gearbox system info (incl.VIN, hardware No., serial No., hardware type, chip ID)
Then perform “Step 2: Read/write data”

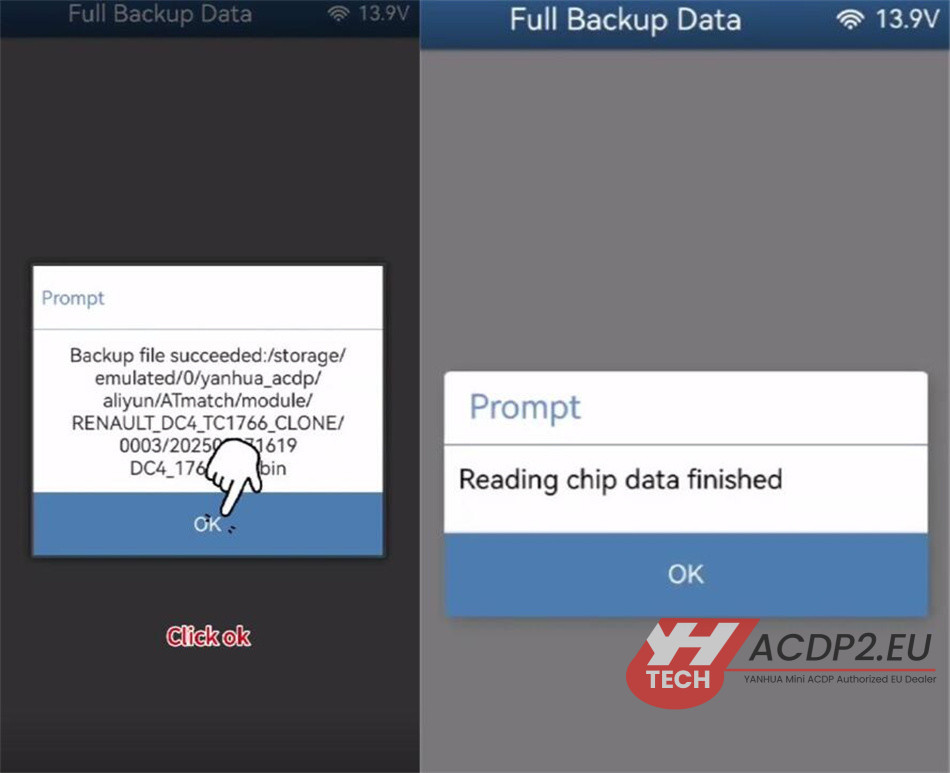

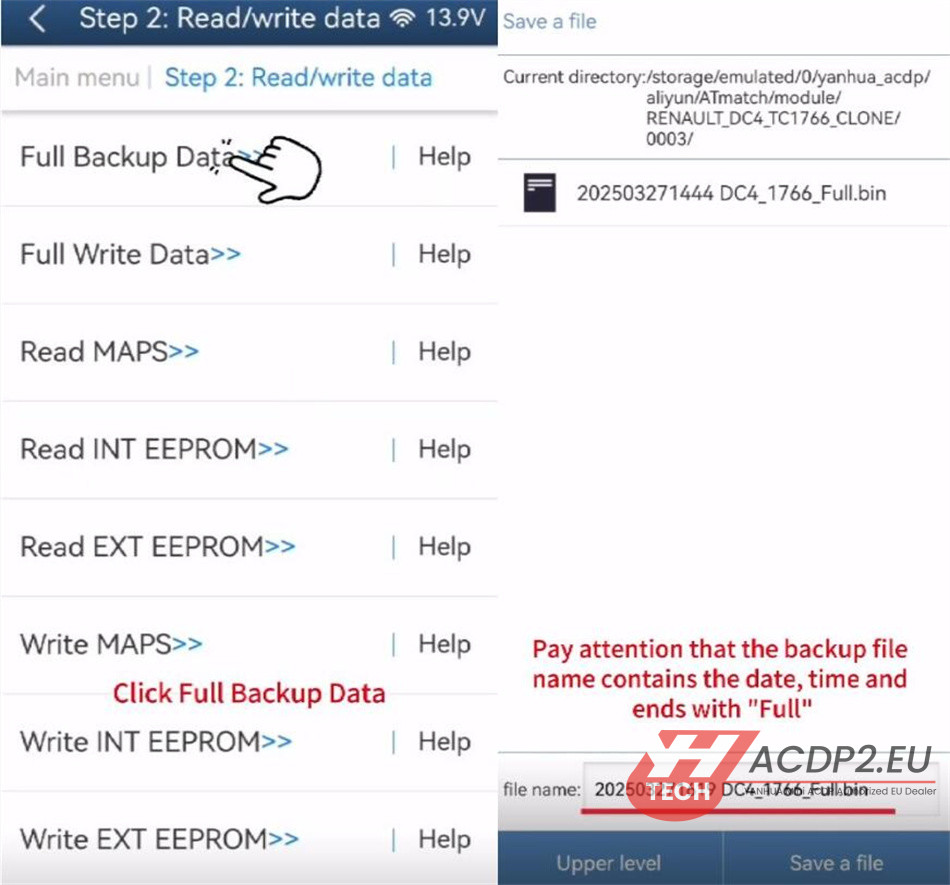

Select “Full Backup Data” to read and save original gearbox chip data
4.Full write data

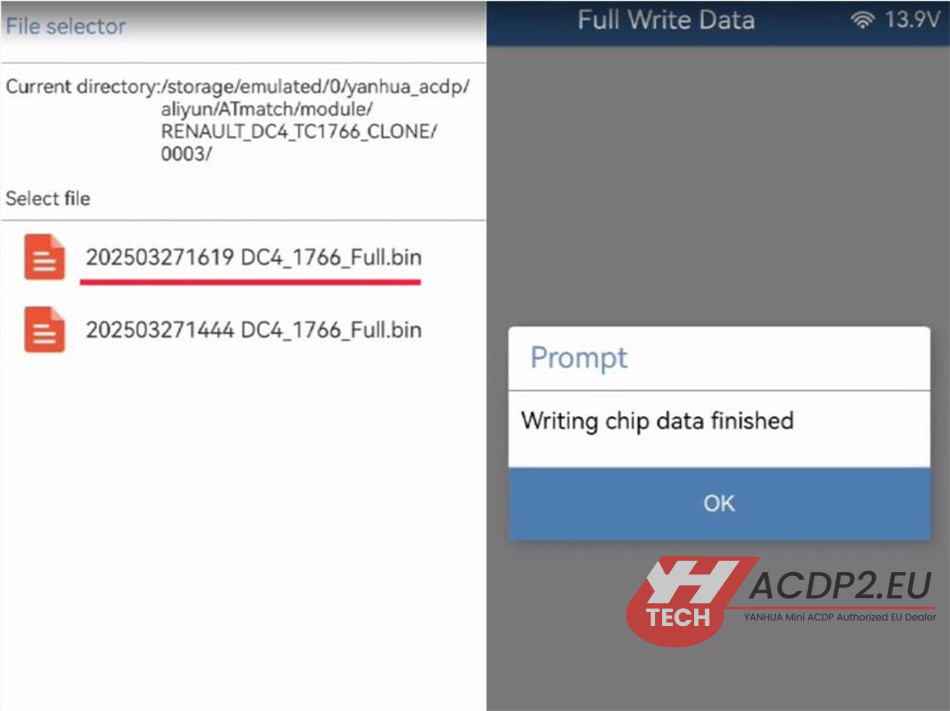

Select “Full Write Data”
Load the original gearbox data to write into the new gearbox
Write chip data successfully
Video guide:
