Yanhua ACDP2 with Module 43 enables the reading, writing, and cloning of data for Nissan 07A gearbox (M3B, E0A, G2A, S0E) directly on bench. This guide provides a complete step-by-step operation process.
Procedure:
Step 1: Preparation
Run ACDP-II software and verify that your programmer is bound.
Step 2: Connection Setup

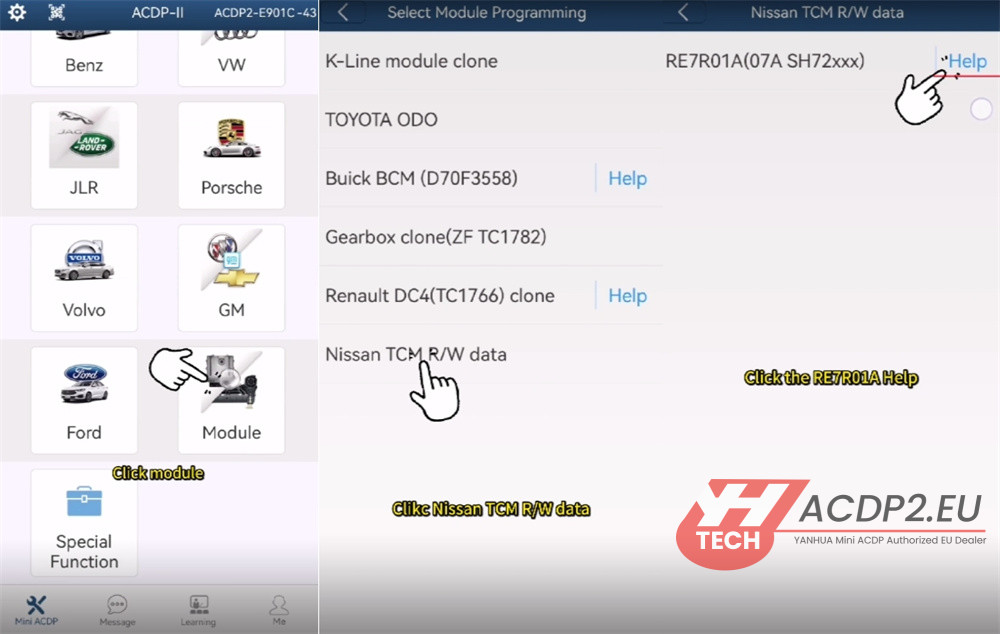

Navigate to: Module > Nissan TCM R/W data > RE7R01A (07A SH72xxx).
Click the “Help” button to view the connection diagram
Required Tools:
l 20P cable
l Nissan 07A gearbox

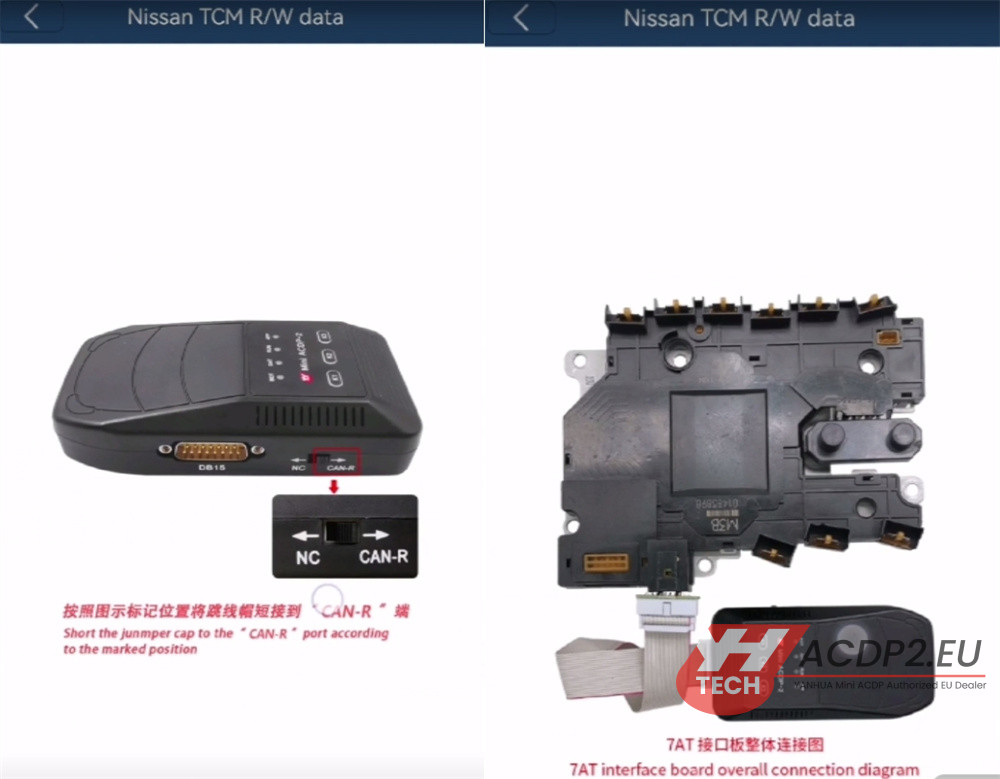

Align the 7AT interface board with the transmission plug
Short the jumper cap to the “CAN-R” port as marked.
Connect Yanhua Module 43 to ACDP2 using 20P cable
Step 3: Identification
Properly connect Mini ACDP to the original gearbox.

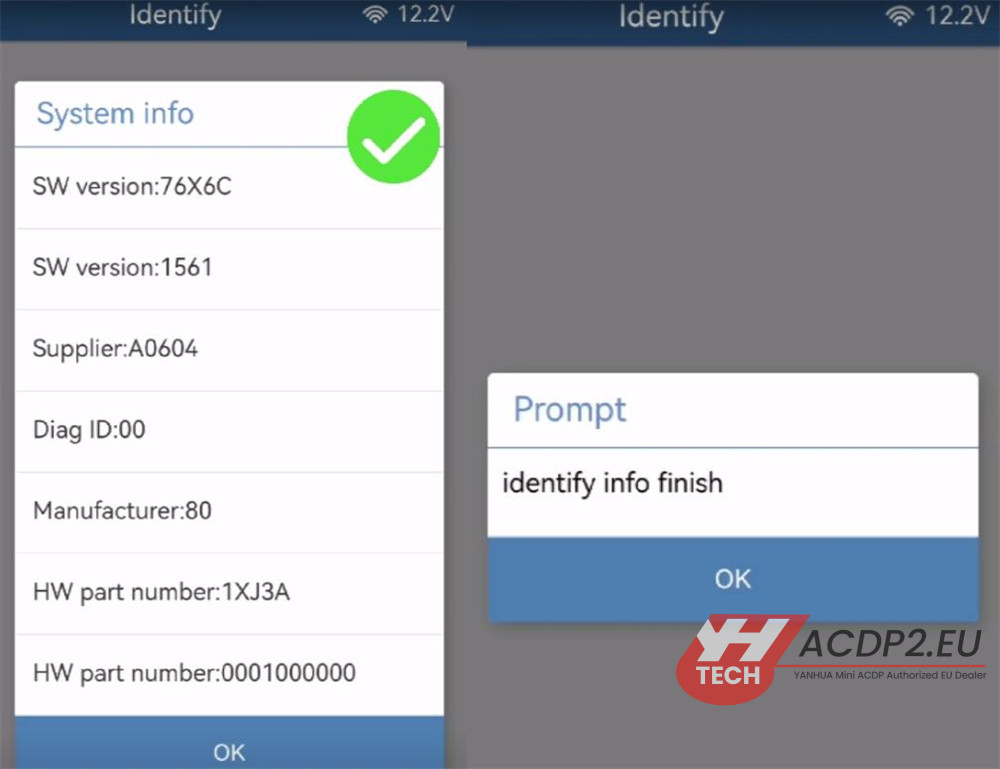

Select “Identify” to retrieve the gearbox (RE7R01A) system information
Step 4: Data Reading & Backup

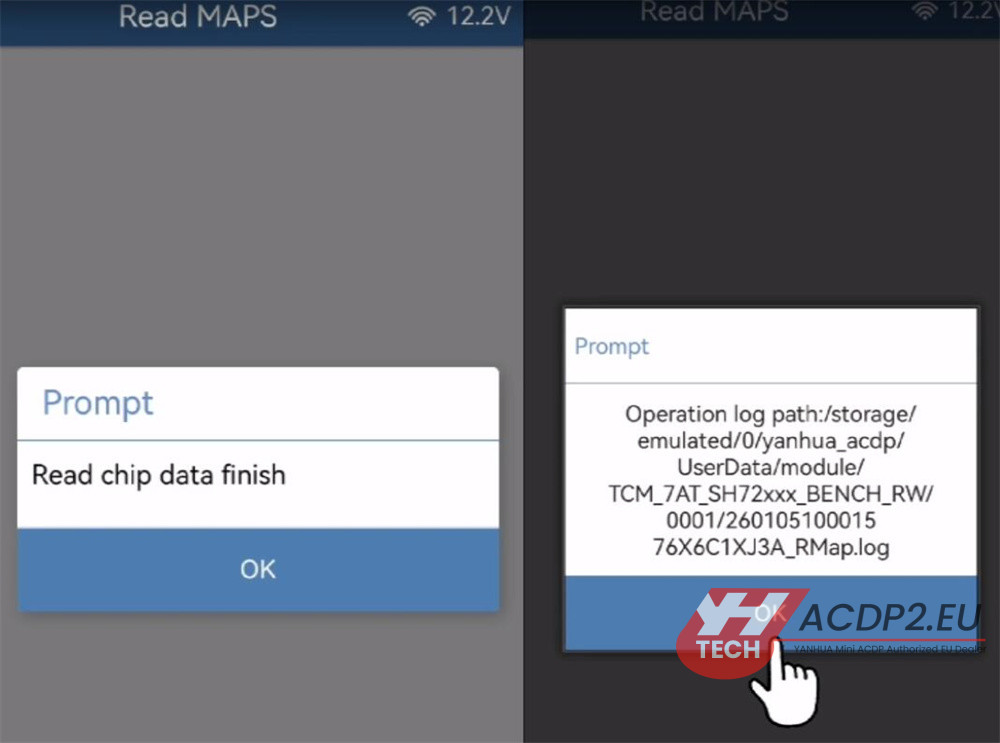

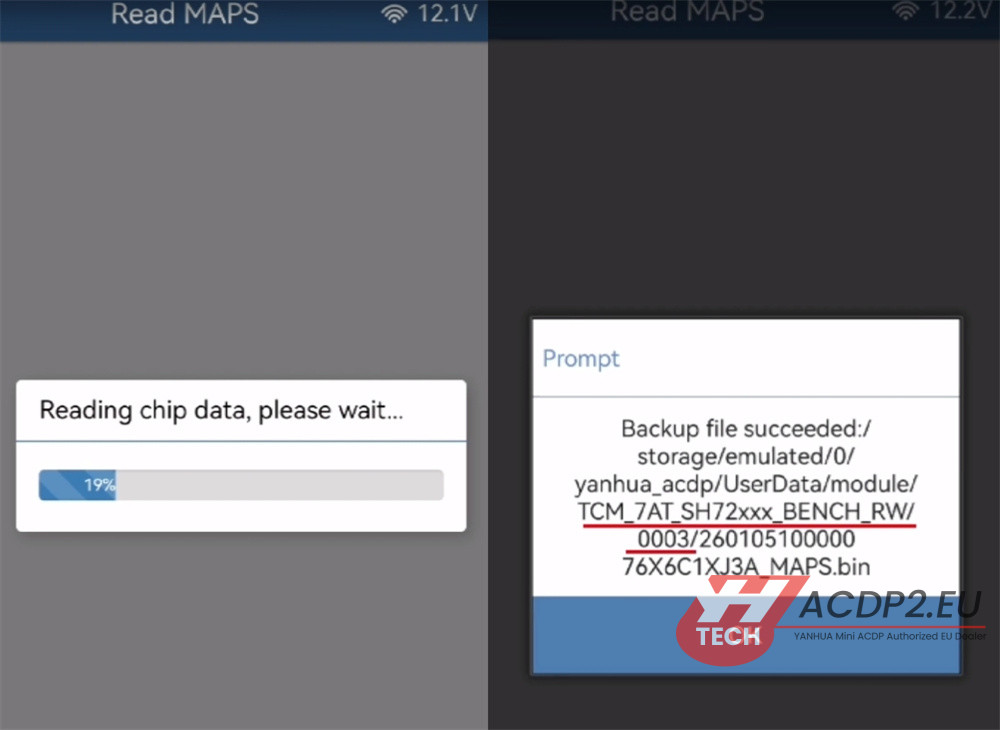

Select the option to read the chip data.
Securely save the map files, carefully noting the backup path and file details
Step 5: Data Writing
Connect Mini ACDP2 to the replacement Nissan 07A gearbox.

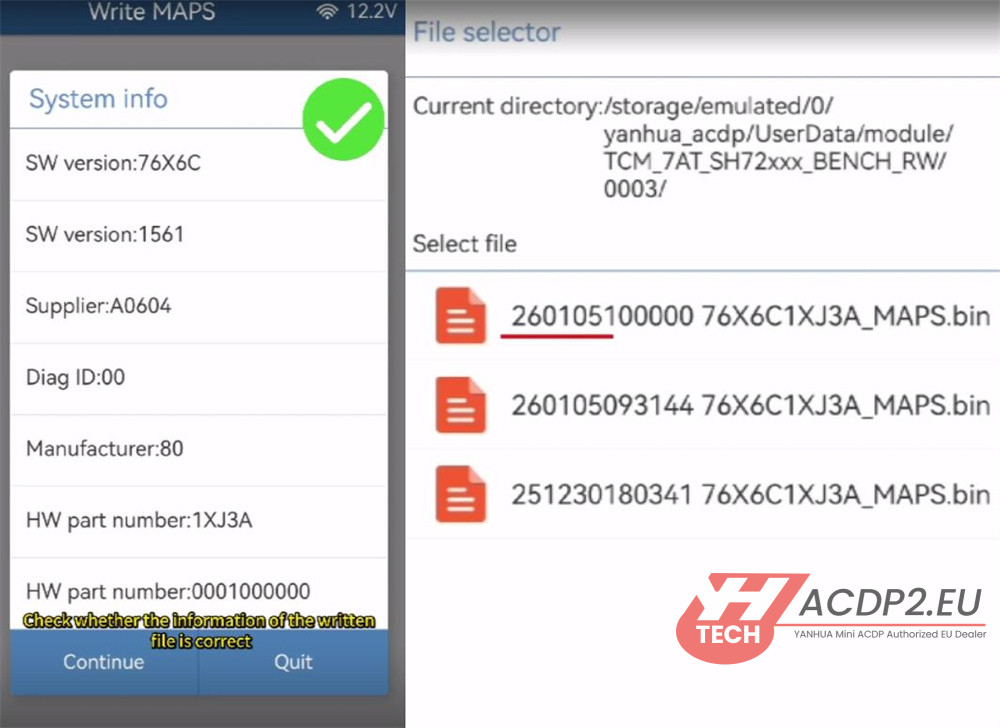

Verify the identification of the new unit.
Select the correct backup file from the original gearbox to write the data.
Confirm the successful completion of the write process
