Question:
I want to use Yanhua ACDP2 to clone Mercedes-Benz VGS3-FDCT (TC275) gearbox. Which module should I buy? How to do?
ACDP2.EU engineer replied:
ACDP Module 36 is required.
Simple guide:
Ensure your ACDP2 is bound to ACDP APP
Menu path:

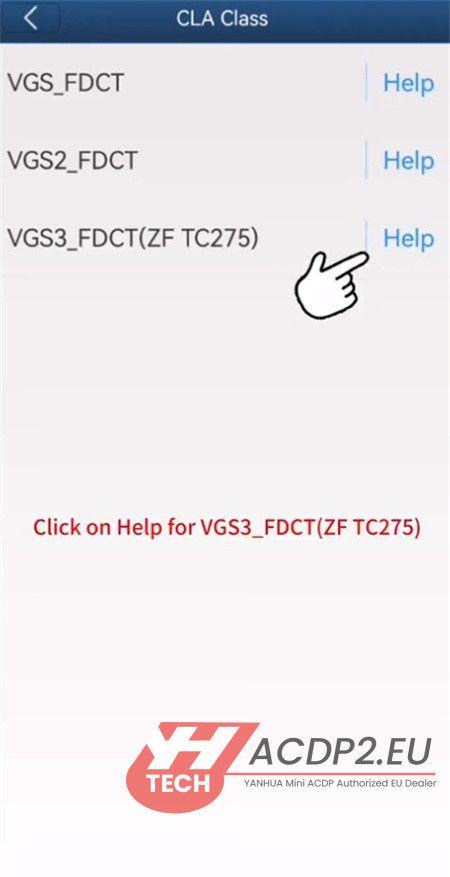

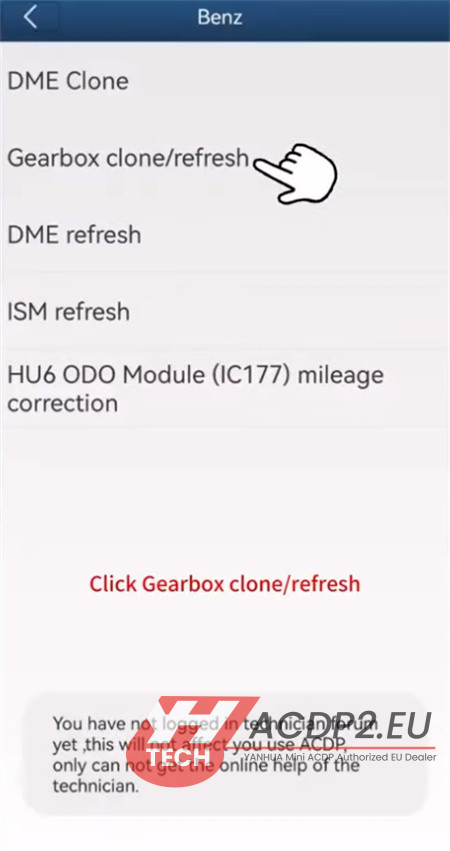

Benz-> Gearbox clone/refresh-> CLA Class-> VGS3_FDCT (ZF TC275)
Click “Help” to check the wiring diagram

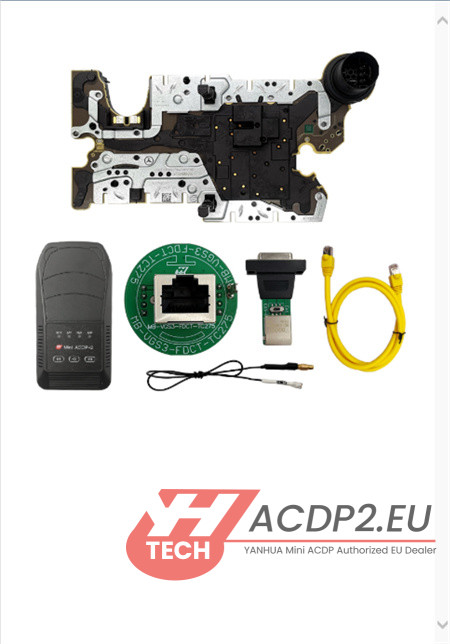

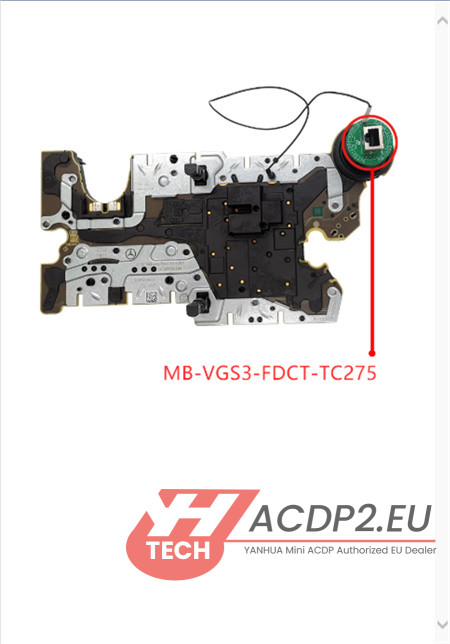

Connect Yanhua ACDP Module 36 (MB-VGS3-FDCT-TC275 Interface Board), Mini ACDP2, and Benz VGS3-FDCT (TC275) gearbox using the related cable correctly
Then perform the functions step by step

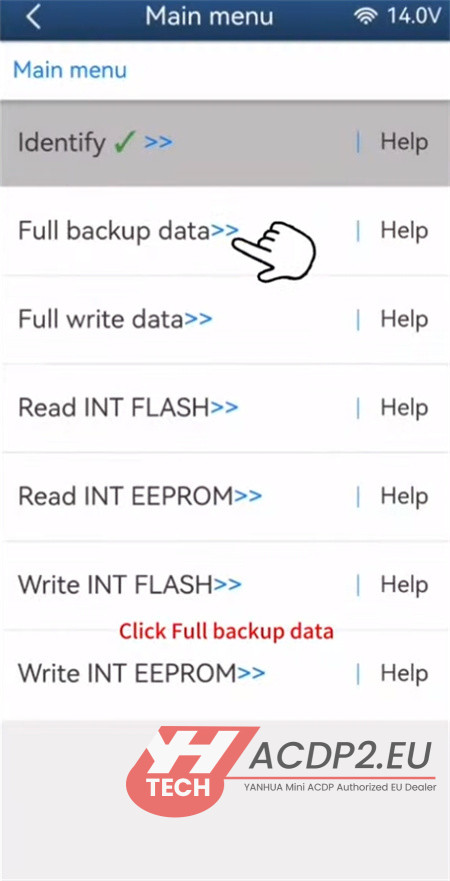

1.Identify chip info
2.Full backup data
3.Full write data

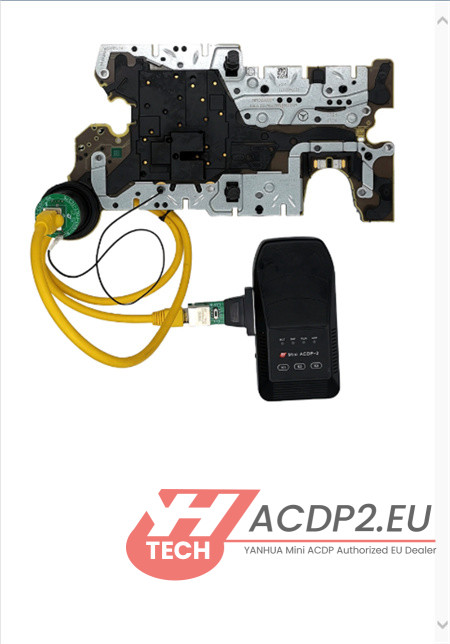

Connect Yanhua Mini ACDP2, Module 36 to new Benz VGS3-FDCT (TC275) gearbox
Write the original gearbox data into the new one
Video guide:
